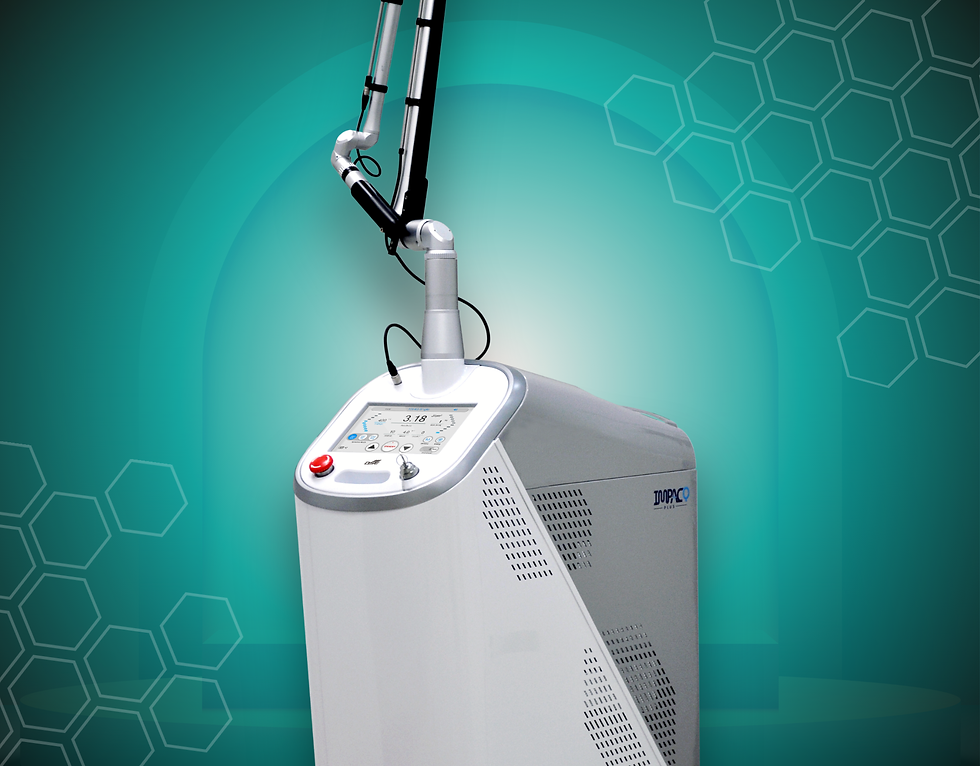

ImpacQ Plus | DSE INC.

Q-switched Nd:YAG Laser System

Innovative Honeycomb Toning
with Q-Switched Nd:YAG Laser

Innovative Honeycomb Toning with Q-Switched Nd:YAG Laser

“Unique Honeycomb Laser Toning Solution – ImpactQ Plus is the first in the world to apply a honeycomb-shaped top-hat beam with an energy equalization lens, delivering outstanding results through the uniformity and stability of the procedure.”

Product Highlights

Multi-Pulse Modes

Stable Pulse Energy

Unique Top-hat Beam

Honeycomb Toning

Various Handpieces

Others

Product Features

Multi-Pulse Modes

Stable Pulse Energy

Unique Top-hat Beam

Honeycomb Toning

Various Handpieces

Others

Other important highlights

Max. 1,800 mJ Quasi-long Pulse

ImpacQ Plus can also deliver a quasi-long pulse laser with microsecond pulse duration, providing thermal effects to the skin for acne treatment.

MLA Zoom Handpiece as a Standard Accessory

ImpacQ Plus includes the MLA Zoom Handpiece (adjustable to 3, 5, or 7 mm) as a standard accessory, eliminating the need for physicians to make an additional investment to purchase it separately.

ImpacQ Plus comes with three handpieces, and MLA Zoom Handpiece extends its versatility by supporting additional indications such as rejuvenation and scar treatment.

Pulse Energy with Ready Pumping

Lamp-pumped solid-state lasers often experience a transient unstable laser output at the start of lamp pumping. ImpacQ Plus eliminates this issue by utilizing the Ready Pumping method, ensuring consistent and stable laser energy output at all times.

Consistent and stable laser output
Better expected clinical outcome
Minimal side effects

Ready-pumping technology delivers consistent and stable laser output.

Treatment using Honeycomb-shaped Top-hat Beam

Honeycomb Toning utilizes a specially designed laser reflector to deliver a unique honeycomb-shaped top-hat beam composed of numerous uniform and stable beamlets. This advanced technology enables a new level of laser toning, achieving remarkable clinical results for recalcitrant melasma as well as a wide range of aesthetic treatments.

Highly effective for melasma
Minimal risk of PIH
Easy treatment with just simple handling
Achieves effective results
Reduced pain and bleeding
Quick post-treatment recovery
Treats complicated cases

Honeycomb Toning provides highly effective laser toning, particularly for treating melasma.

Honeycomb-shaped Beam

ImpacQ Plus features a distinctive honeycomb-like beam profile. Each single beam is composed of multiple evenly distributed beamlets, forming a Top-Hat Beam Profile. This profile ensures a more uniform energy distribution compared to traditional Gaussian beams or ring-pattern beams.

This enhanced uniformity delivers exceptional clinical outcomes, particularly for laser toning, challenging conditions like melasma, and various aesthetic treatments.

Multiple even beamlets
Exceptional clinical outcomes
Excellent result especially melasma

Compared to a traditional Gaussian beam, ImpacQ Plus’s honeycomb Top-Hat beam profile provides significantly more uniform energy delivery.

Single, Double, Triple Modes

ImpacQ Plus offers multiple pulse modes, including Q-Single, Q-Double, and Q-Triple, enabling customized treatment plans for each patient.

Q-Single: Energy to the skin in a single pulse
Q-Double: Energy into two consecutive pulses having 150 µs interval, with each pulse delivering half of the total energy.
Q-Triple: Energy into three consecutive pulses having 100 µs interval, with each pulse delivering one-third of the total energy.

ImpacQ Plus provides versatile pulse modes that deliver energy in one, two, or three precisely timed pulses.

Indication

ImpacQ Plus offers a wide range of clinical applications, delivering safe, precise, and effective results across various treatment indications.

Epidermal Pigments

Lentigines
Freckles
Solar Lentigines
PIH
Seborrheic Keratosis
Café-au-Lait

Dermal Pigments

Nevus of Ota

Nevus of Ito

Becker's, Nevus

ABNOM

Blue Nevus

Melasma

Tattoo

Black Tattoo

Colored Tattoo

Skin Rejuvenation

Acne

Scars

Wrinkles

Enlarged Pores

Clinical Photos

WHAT DOCTORS SAY

"Since 2020, I have been using IMPAC-Q PLUS, and it has greatly helped my patients achieve their skin goals. It has become a go-to treatment for conditions such as melasma and other pigmentary disorders, acne, skin lightening for intimate areas, and general skin brightening. With established protocols for various skin conditions, it can address a wide array of concerns. IMPAC-Q PLUS has proven to be an invaluable device in my private practice."

Joseph Andrei Bongalo, M.D.

Basix Aesthetics and Anti-Aging Clinic
Philippines

WHAT DOCTORS SAY

"My initial impression of the IMPAC-Q PLUS was that it appeared robust. After using it, I found the device to be silent with incredibly stable energy output at both 1064 nm and 532 nm. The ability to use three different handpieces allowed me to tailor treatments for each patient effectively. Despite its outstanding performance, the device remains reasonably priced. I highly recommend the IMPAC-Q PLUS to fellow physicians considering a new QSNY for their clinics."

Jae Dong Lee, M.D.

Misodam Clinic
South Korea

Item	Description
Laser Type	Q-switched Nd:YAG
Wavelength	532 nm, 1064 nm
Pulse Duration	6 - 20 ns
Spot Size	2 - 10 mm
Repetition Rate	1 - 10 Hz
Pulse Energy (532 nm)	532Q-Single: 20 - 320 mJ
	532Q-Double: 30 - 480 mJ
	532Q-Triple: 40 - 480 mJ
Pulse Energy (1064 nm)	1064Q-Single: 50 - 800 mJ
	1064Q-Double: 80 - 1200 mJ
	1064Q-Triple: 100 - 1500 mJ
	1064Non-Q: 100 - 1800 mJ
Dimension	345 x 750 x 1155 mm
Weight	80 Kg
